3×3 vs. 4×2 Labels for Cabinet Production: Which Size Fits?

For a cabinet shop, the difference between a 3 × 3 label and a 4 × 2 label is not just a matter of appearance. The face shape influences how much part information fits on one line, where a barcode or identifier can be placed, and how the label must travel through the installed printer.

SRD Labels lists both sizes in direct thermal and thermal transfer constructions. This guide helps you compare them for CNC part identification without assuming that the same label roll fits every production line.

Understand the physical difference first

• 3 × 3 inches: a square label, approximately 76.2 mm on each side.
• 4 × 2 inches: a rectangular label, approximately 101.6 mm by 50.8 mm.

These dimensions describe the label face. The backing liner can be wider, and the orientation of a 4 × 2 face on the roll determines how much media crosses the printhead. Before choosing a format, find the allowed media width and the feed direction of the printer installed in your CNC or panel-saw line.

When might a 3 × 3 label be a useful format?

A square layout can help when part-identification information needs room in both directions. For example, you might want a part identifier above a barcode, with a job reference or handling note below it. Whether it actually fits depends on the length of the values, font sizes, barcode symbology, printer resolution and margins.

Consider a 3 × 3 face if your existing software already produces a square label layout and the installed media path accepts the complete roll specification. Do not assume that a three-inch face means a three-inch liner, or that the core and winding will match.

Current options: 3 × 3 direct thermal and 3 × 3 thermal transfer.

When might a 4 × 2 label be a useful format?

A rectangular layout can suit part identifiers, barcodes and text that are arranged horizontally or vertically along a narrower strip. A shorter second dimension may work well where less face height is available on a component—but the usable layout must be verified with an actual print.

For 4 × 2 media, ask how the label is oriented on the roll. The 4-inch side may run across the media path, or the 2-inch side may run across it, depending on the supplied configuration. These are physically different requirements for the printer; rotating the label design in software does not automatically solve an incompatible roll width.

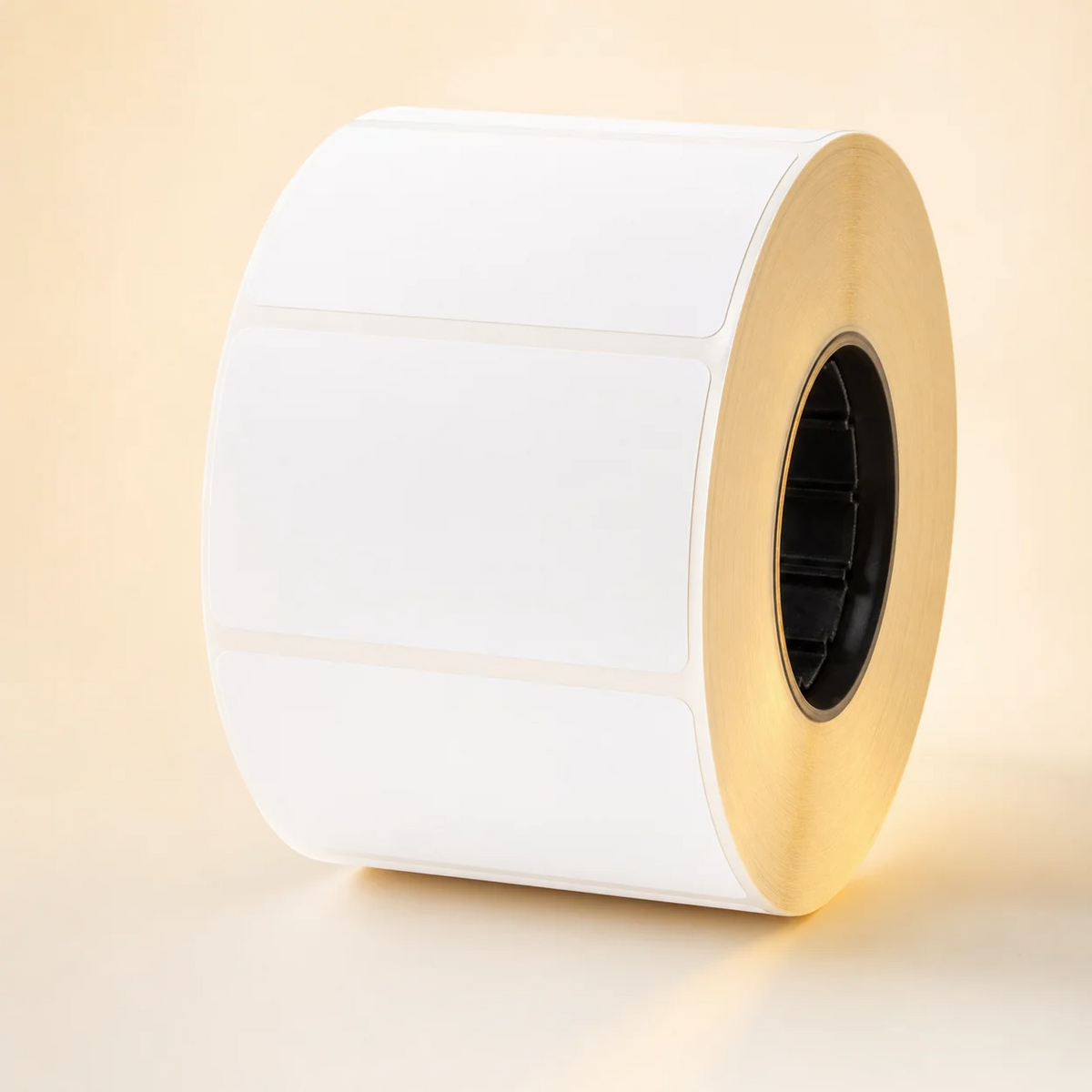

Current options: 4 × 2 direct thermal and 4 × 2 thermal transfer.

Why printer passage width matters

As a concrete example, documentation for the legacy Carl Valentin ILX 81/12 describes a 90 mm passage width. A 4-inch face dimension is 101.6 mm, so that dimension cannot run across a 90 mm passage. The 2-inch dimension is 50.8 mm, but the complete liner width, roll orientation, sensor settings and hardware still must match.

A 3 × 3 face is 76.2 mm wide across either dimension, but that alone does not prove it fits a 90 mm passage: a wider liner, incompatible roll holder or wrong winding direction can still make the media unsuitable.

For this printer family, review the ILX 81/12 selection guide and confirm the precise installed model. The example should not be used to infer specifications for unrelated SRD, Zebra or other print engines.

Size is only one decision: direct thermal or thermal transfer?

The same face dimensions appear in two different label constructions:

• Direct thermal (DTL): intended for printers configured to print on heat-sensitive media without a ribbon.
• Thermal transfer (TTL): intended for printers configured to use a matched transfer ribbon.

Check the printing method before selecting either size. A 3 × 3 direct thermal roll is not an interchangeable substitute for a 3 × 3 thermal transfer roll just because the face measures the same. See direct thermal versus thermal transfer printing for details.

Test your real barcode and layout before switching sizes

A good format is one your team can print, apply and read consistently. For the actual part-identification template, test these details:

1. Longest expected data: use realistic part names, order references and job IDs rather than short sample values.
2. Barcode and quiet zones: make sure the printed symbol has enough space, then test it with the scanner used on your shop floor.
3. Font and contrast: verify legibility at the installed print resolution, speed and material combination.
4. Application surface: check whether the label adheres as intended and removes as intended from your actual board, laminate or coating.
5. Feed and dispensing: confirm that the printer or applicator registers the labels correctly through a representative production cycle.

If moving from one label size to another, the production software's label template and calibration settings may need updating. Document the original settings before making changes.

Compare the current SRD product configurations

At the time of publication, SRD's four listed industrial label products describe 3,000 labels per roll, four rolls per case and a 3-inch core. This is useful purchasing information, but you must still confirm the roll's full width, outside diameter, winding and sensing configuration for your equipment.

• Compare 3 × 3 industrial labels in both printing methods.
• Compare 4 × 2 industrial labels in both printing methods.
• Browse direct thermal labels for compatible ribbon-free printers.
• Browse thermal transfer labels for compatible ribbon-based printers.

Which label should your shop order?

Choose based on the installed printer and actual job requirements—not on shape alone. Match the print method, total liner width, core, winding, outer roll diameter and sensor format first. Then print real production data in both layouts if you are evaluating a size change.

For the full checklist, use our CNC label buying guide and industrial roll measurement guide. If you want help matching an existing roll, contact SRD Labels with the exact printer model and photographs of the current media.
